Before it moves in
Get into the details.
Read the fine print. It’s lighter than moving the wrong equipment.

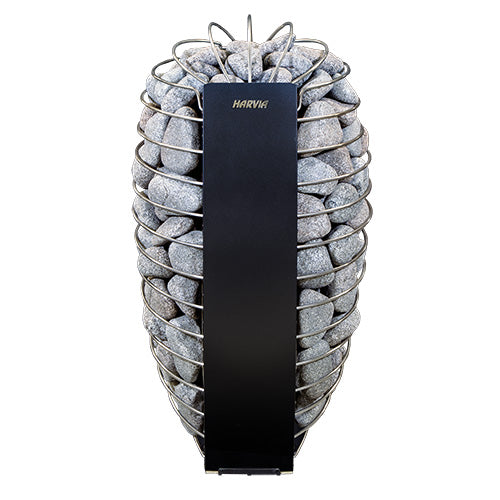

Harvia's Spirit wall heater in 6kW, for sauna rooms of 177 to 294 cubic feet. The E means external control: the heater has no controls of its own.
Specifications
- Output: 6kW
- Room size: 177 to 294 cubic feet
- Mounting: wall
- Safety: integrated safety functions
- Power: 240V single phase, 25 amps, 10 AWG wire
- Stone capacity: 110 lbs (49.9 kg)
- Ceiling height: needs 75 in (190 cm)
- Certification: ETL
- Weight: 28.8 lbs (13.1 kg); 160.8 lbs (72.9 kg) shipped with stones
- Dimensions: 15 x 13.1 x 29.5 in (38.1 x 33.3 x 74.9 cm) W x D x H
Before you order
- Needs a separate Harvia control unit (Xenio or Fenix), sold separately.
- Harvia specifies R-991 rounded stones for the Spirit series: 110 lbs, so four 33 lb boxes.
- Hardwired 240V: plan on a licensed electrician for the circuit and the connection.
Specifications come from the manufacturer. If one of them decides your install, ask us before you order and we'll confirm it with the supplier.
