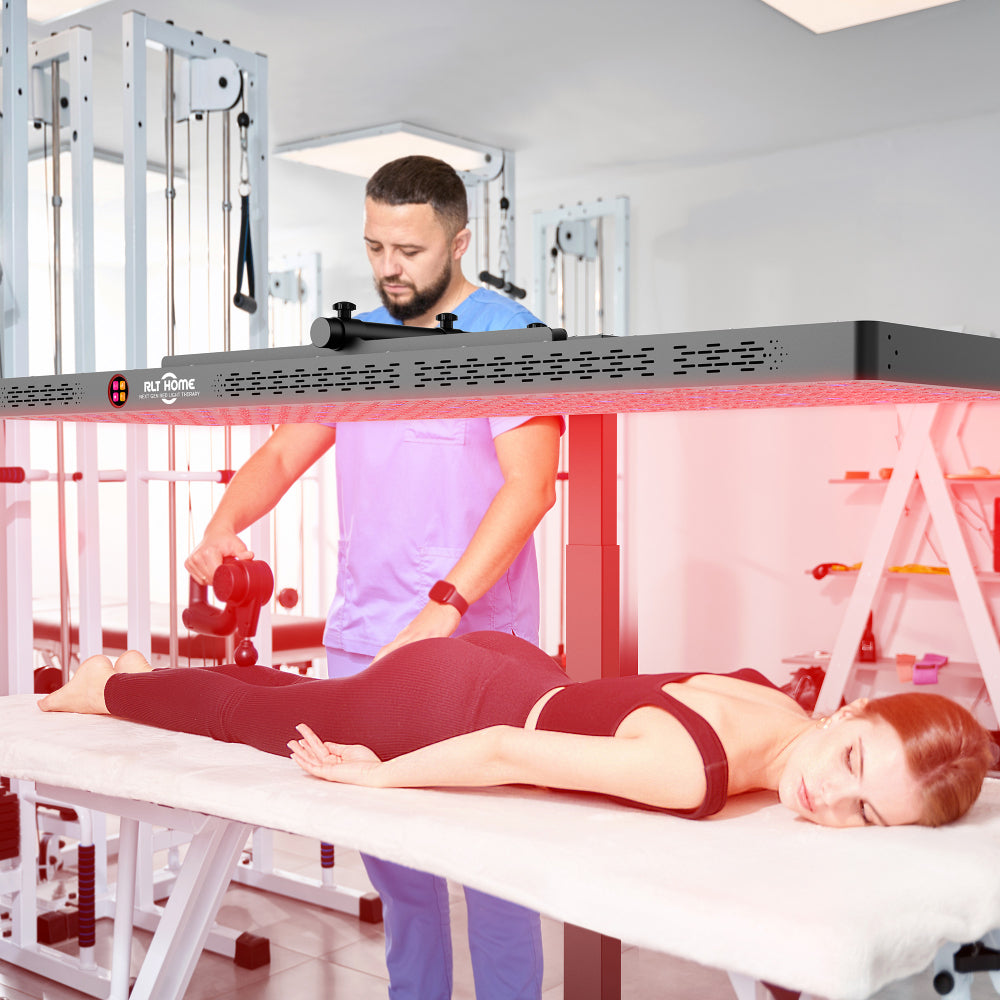

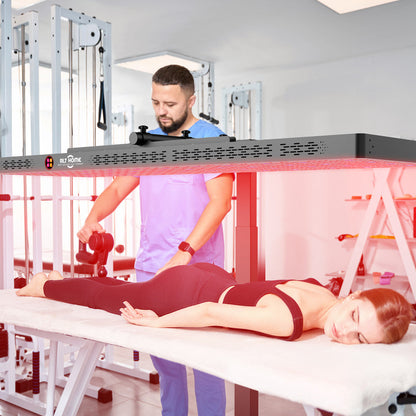

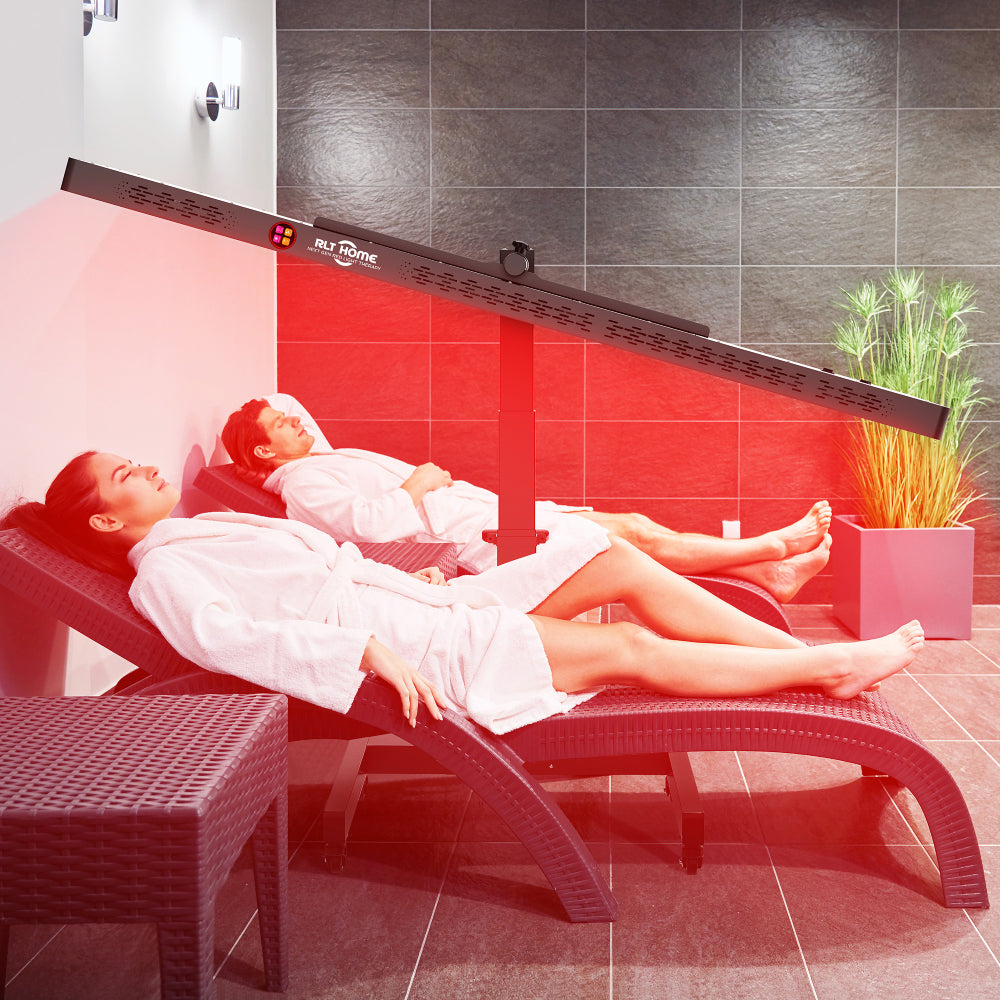

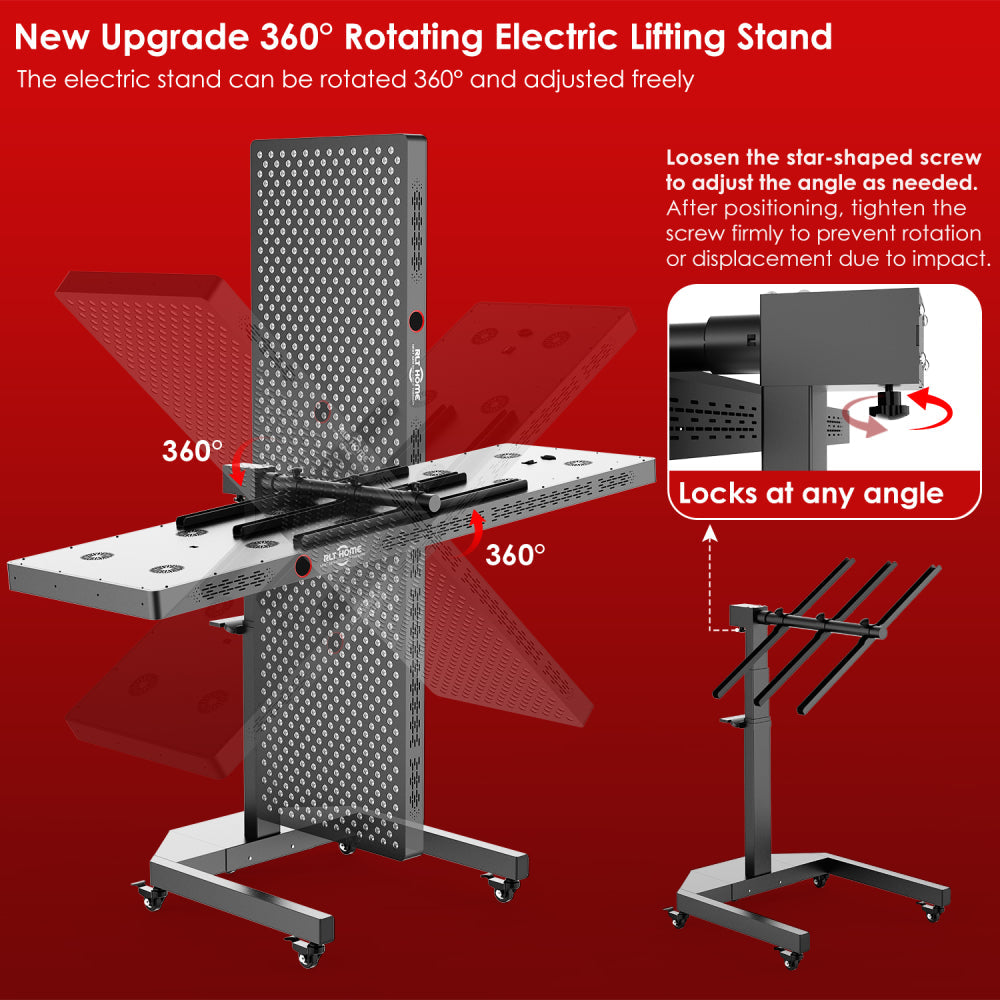

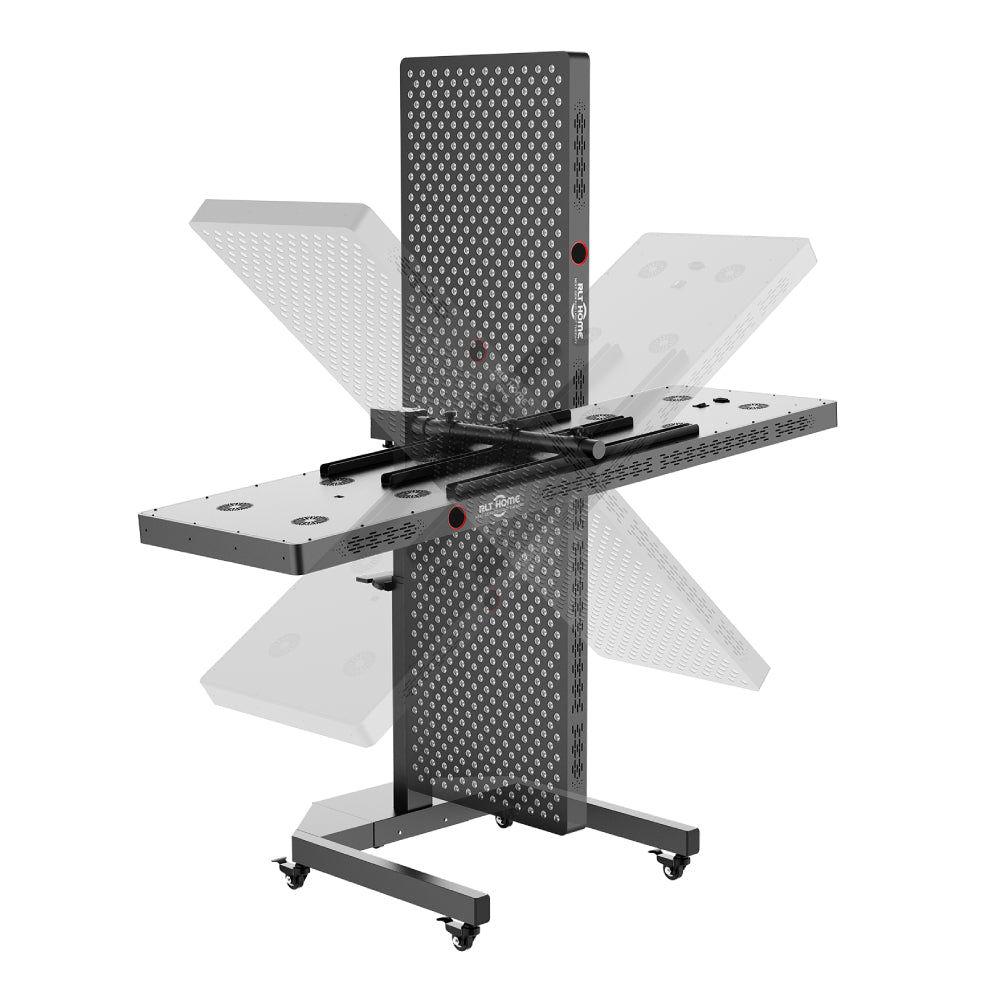

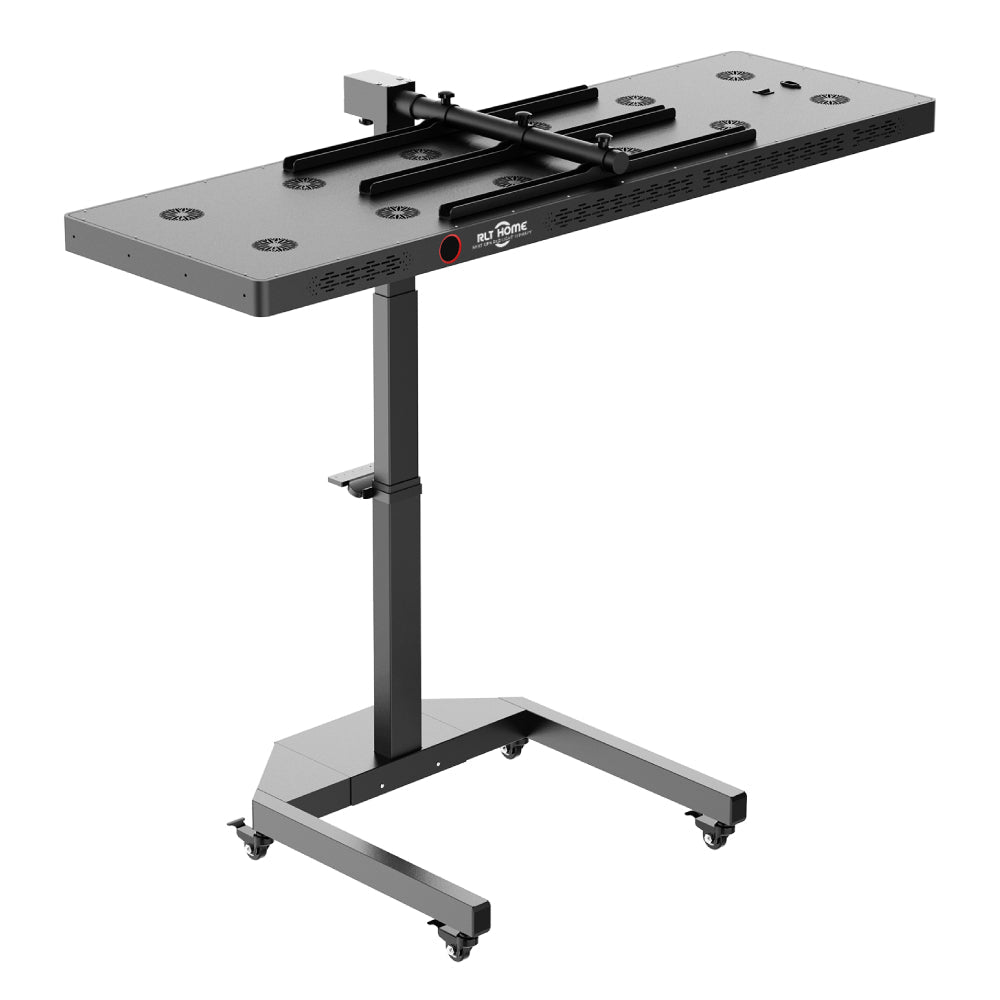

The largest panel in the Total Spectrum range: 864 LEDs across a 65-inch panel, on an electric stand that raises, lowers and tilts it over a bed or massage table. This is the one you buy for full-body sessions without moving between positions.

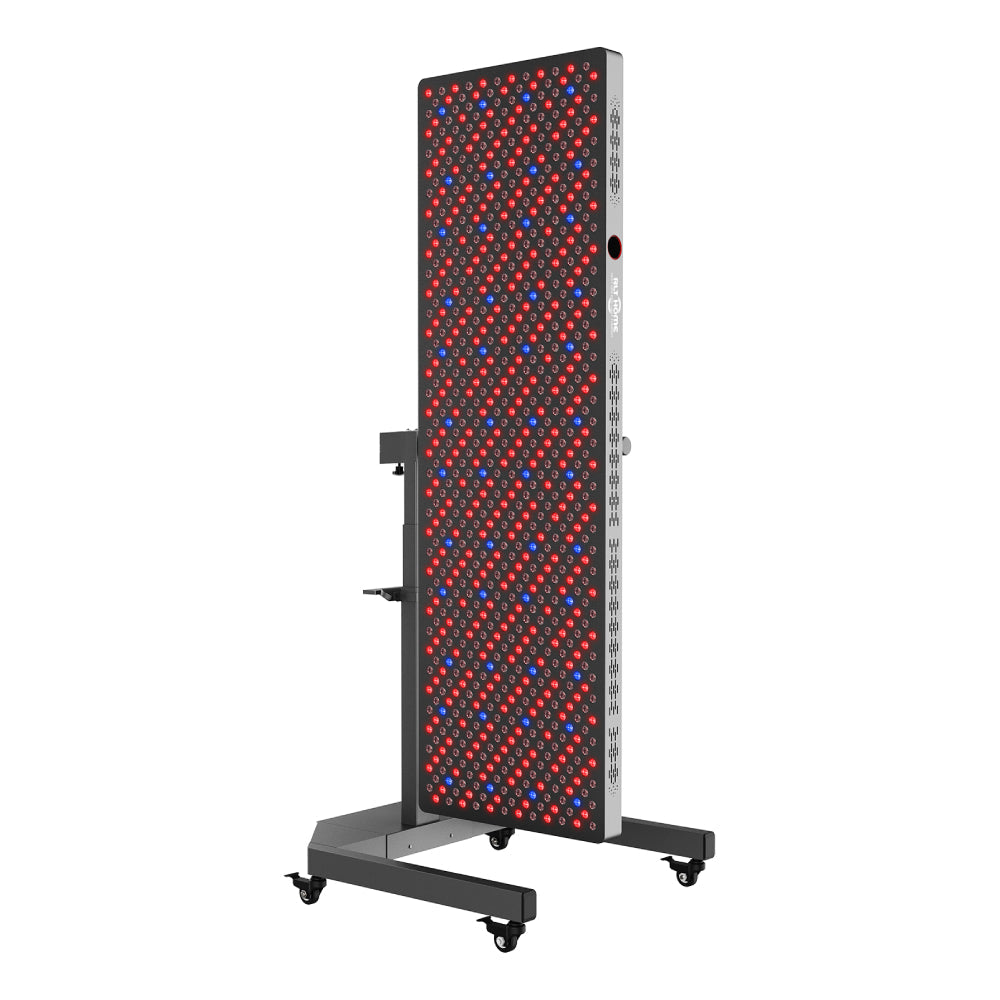

It is built for the full body, lying down or standing, on the electric stand that is included. Every figure below is the manufacturer's own measurement; we list what they measured and nothing they did not.
Light
- LEDs: 864, rated for 100,000 hours

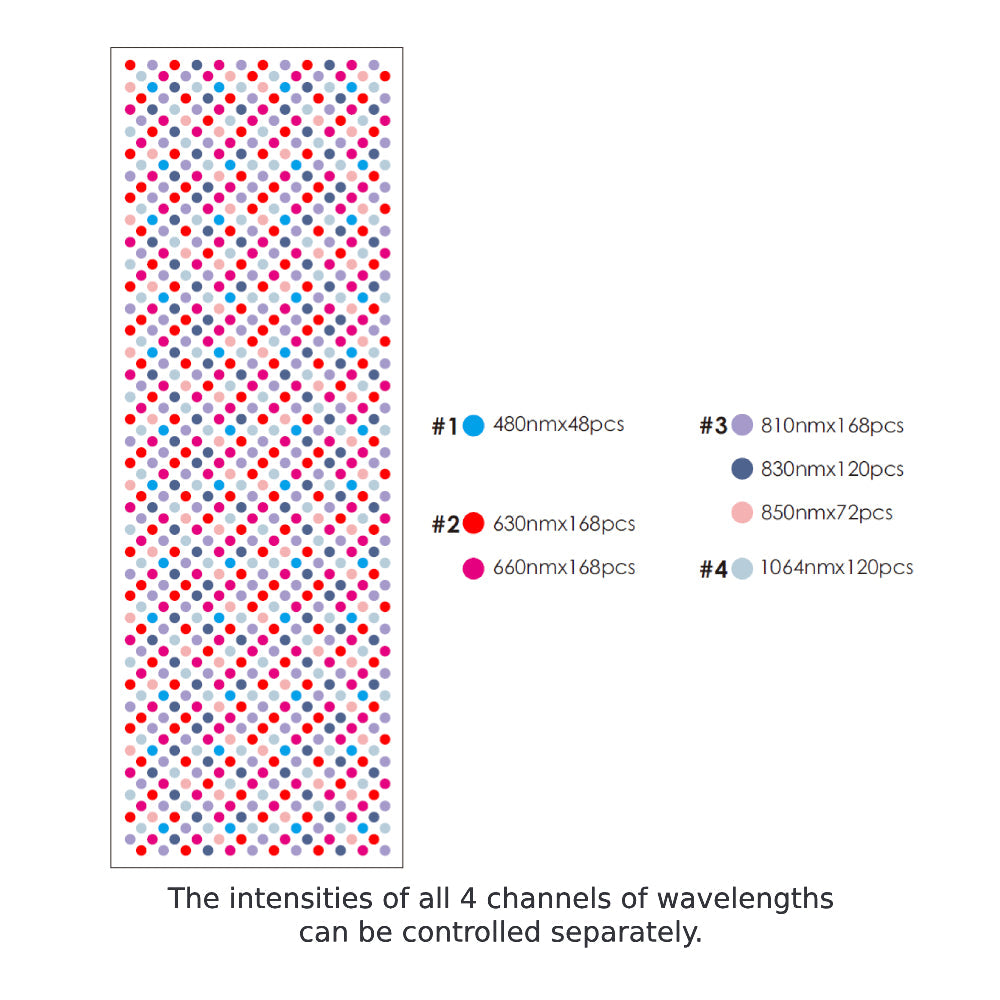

- Seven wavelengths: 480 nm blue (6% of LEDs); 630 nm and 660 nm red (19% each); 810, 830 and 850 nm near-infrared (19% / 14% / 9%); 1064 nm infrared (14%)
- Irradiance: 179 mW/cm² at 8 inches (solar power meter); 121.62 mW/cm² at 6 inches (spectrometer)
- Beam angle: 30°
- Flicker: none measured. EMF: about 0.0 μT at 6 inches and beyond
Controls
- Touch interface and remote control
- Pulsing adjustable from 0 to 5,000 Hz
- Nine preset modes plus a custom mode with independent intensity and pulsing for the red, blue, near-infrared and 1064 nm channels
- AC 100 to 240 V; standard US outlet
Size and weight

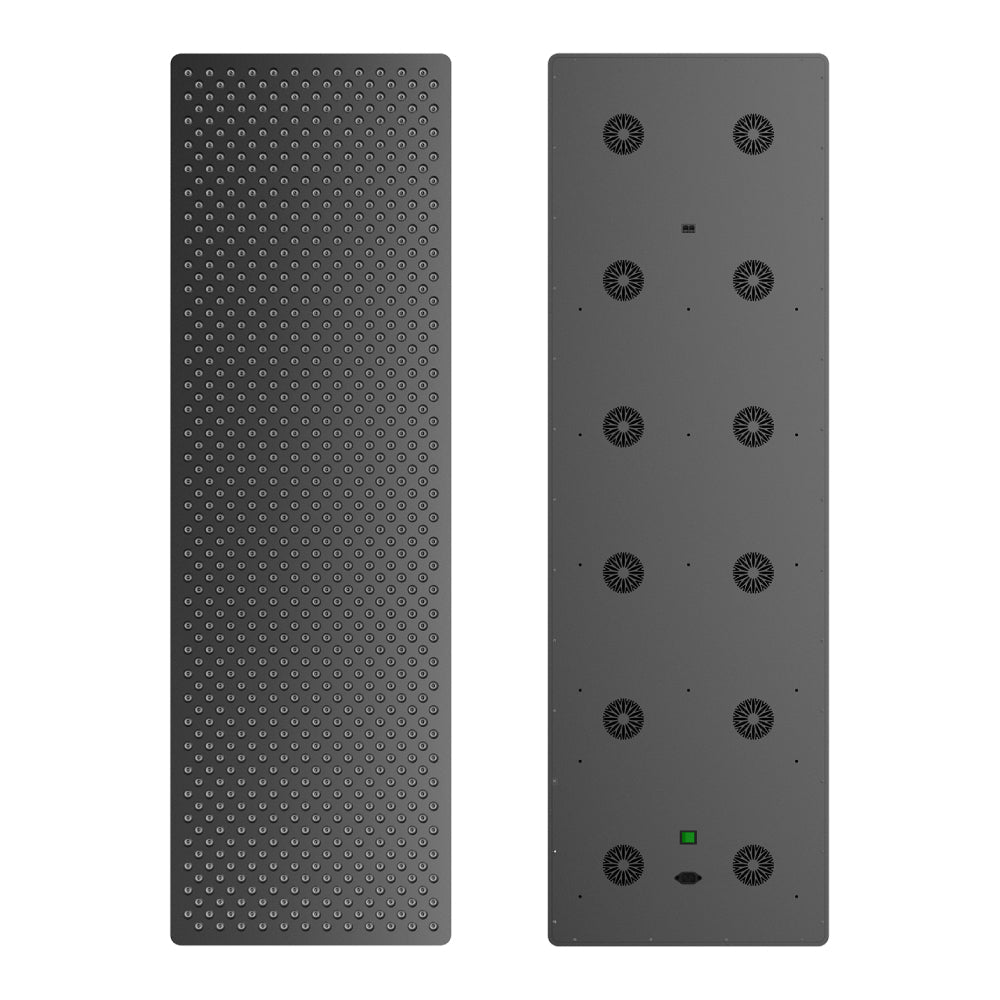

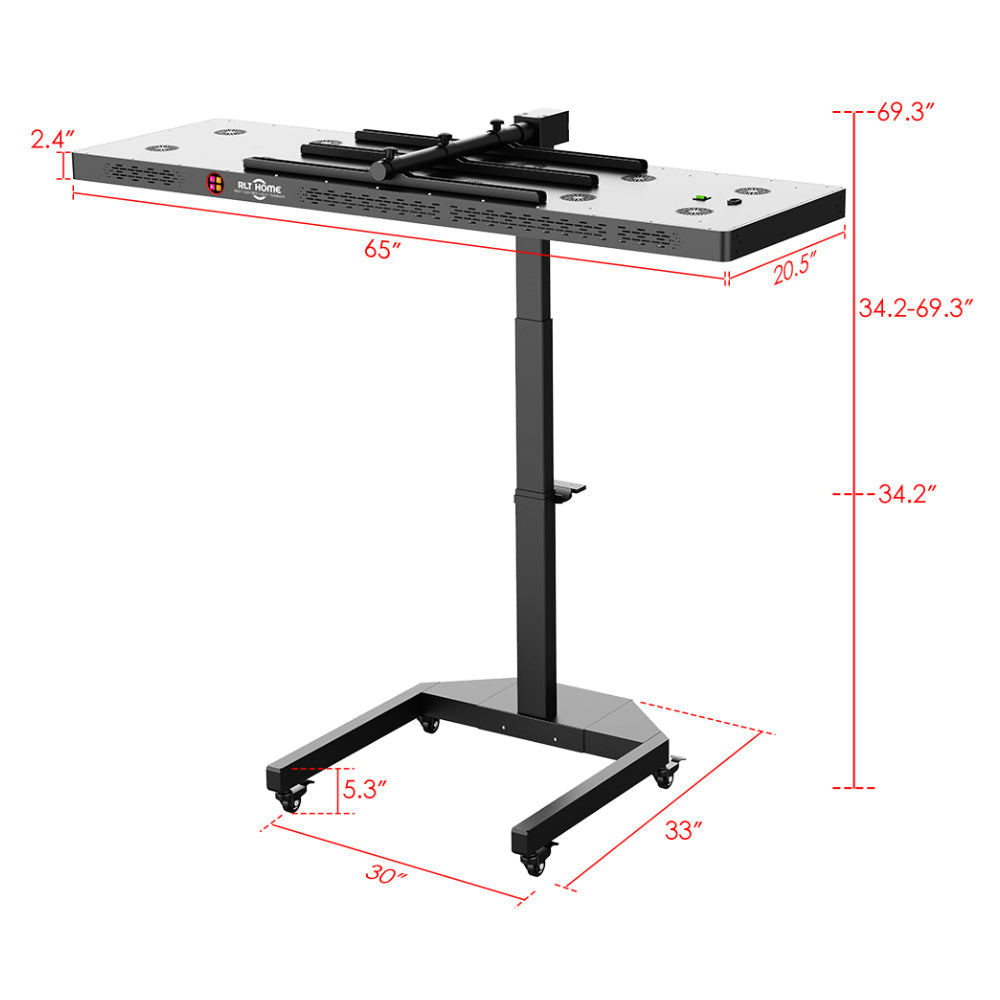

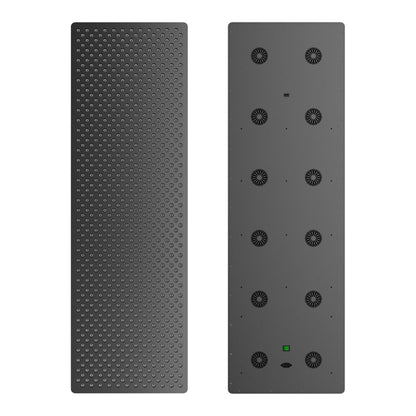

- Panel: 65" x 20.5" x 2.4" (1650 x 520 x 60 mm), 86 lb (39 kg), iron housing

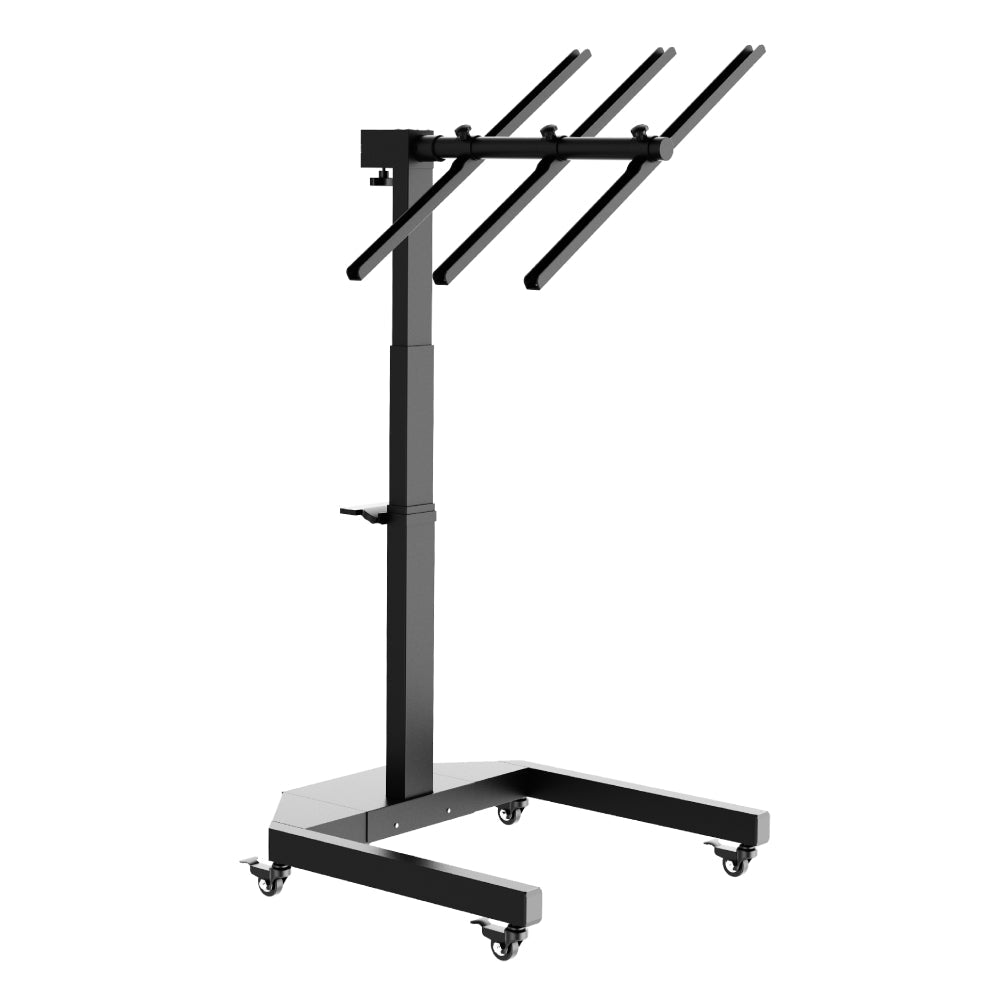

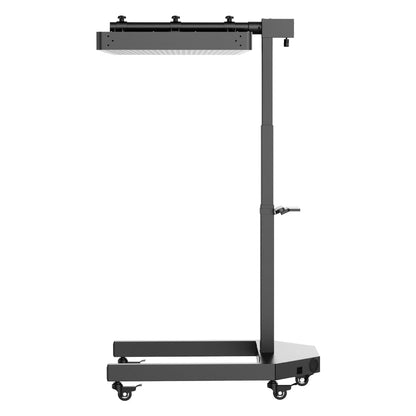

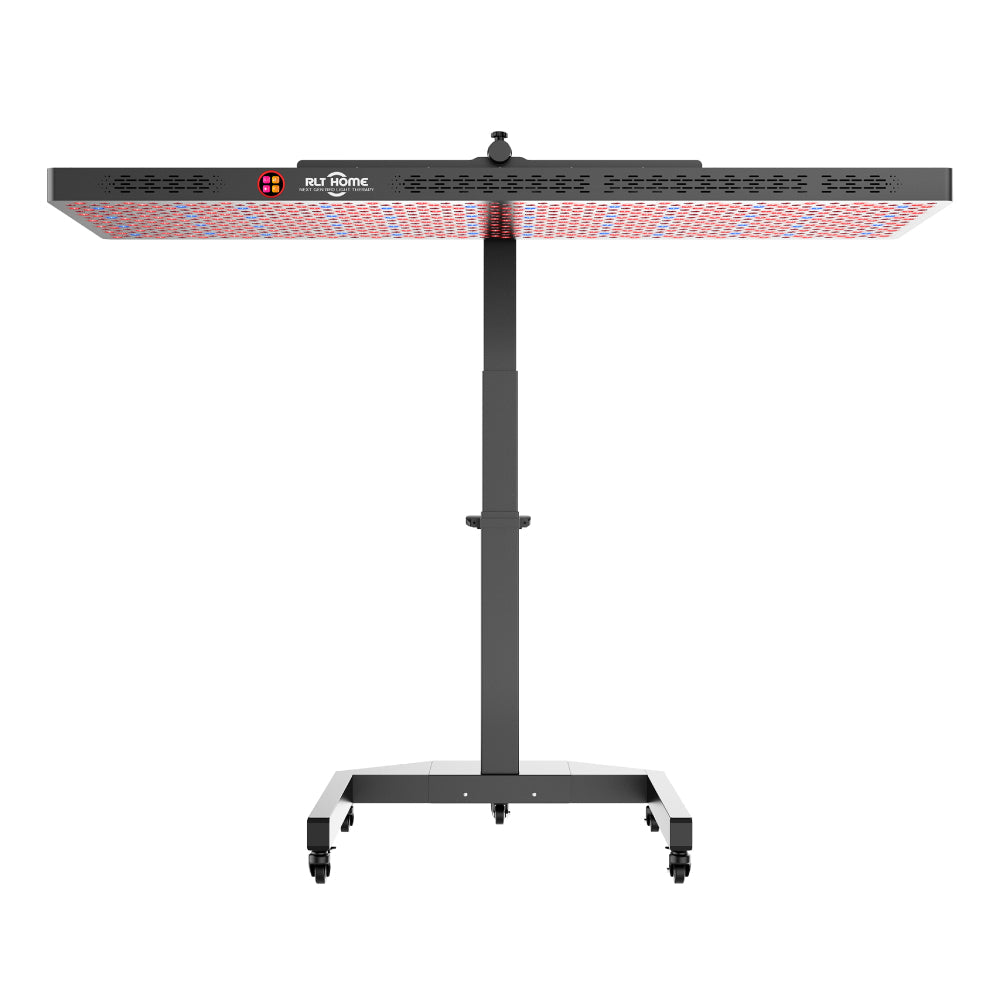

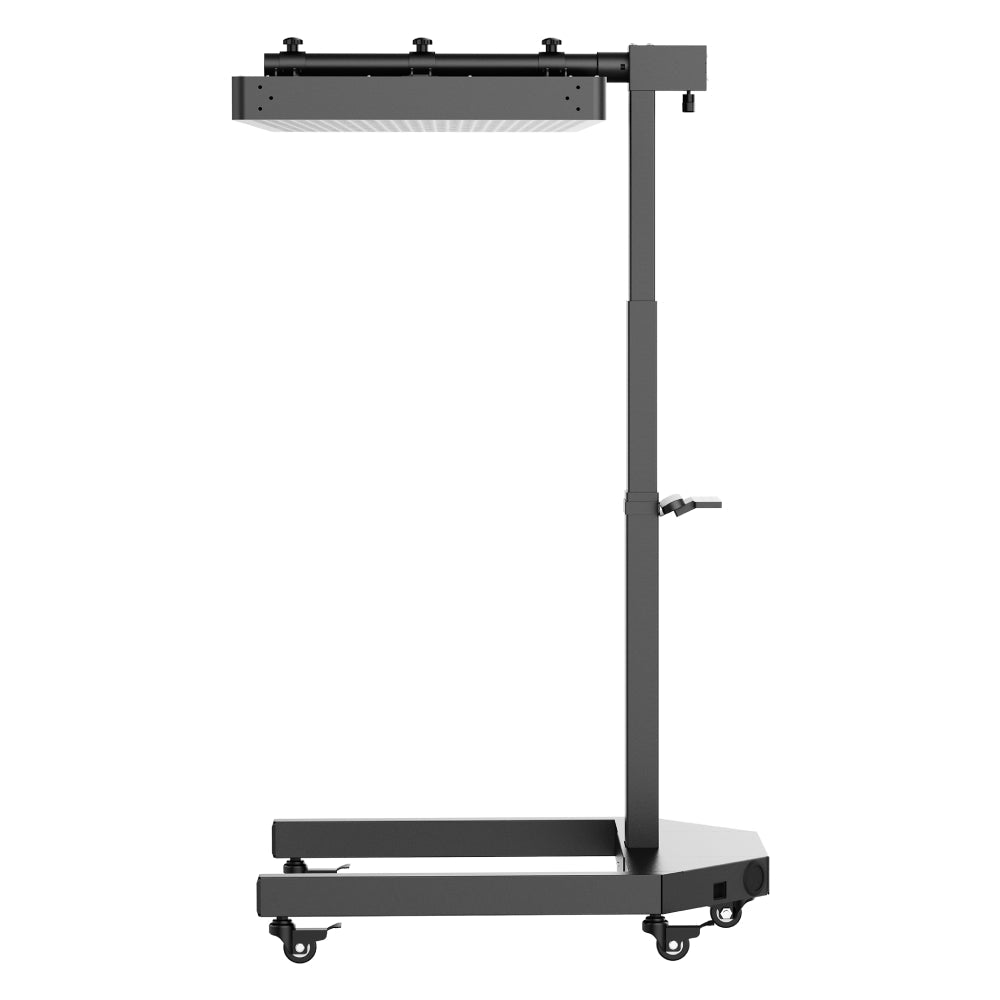

- Electric stand (included): about 3 ft x 3 ft footprint; panel height adjusts from 29" to 64" off the floor; 5.5" clearance under a bed or massage table on wheels, 3" without
- Ships as two boxes: the panel (68" x 24" x 7", 92.6 lb) and the stand (33" x 29" x 6", 59.5 lb)

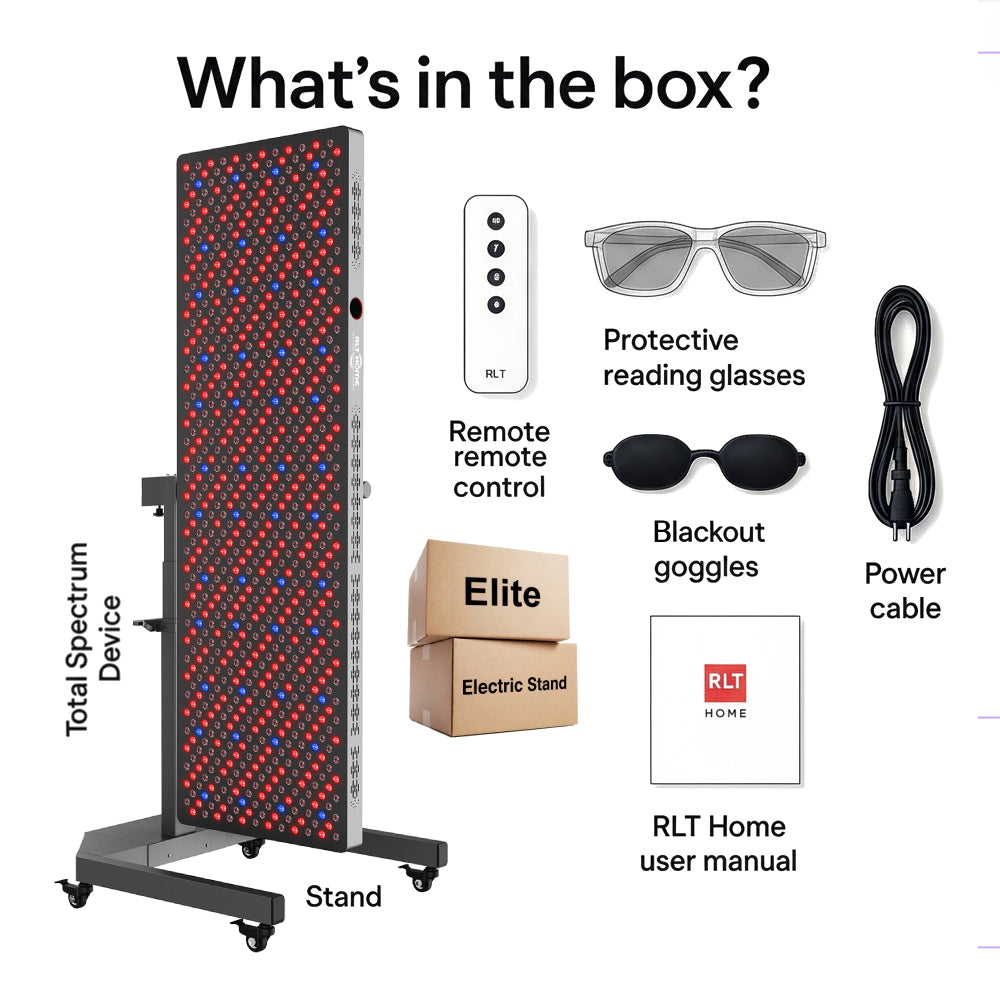

In the box
ELITE panel, adjustable electric stand, remote control, protective reading glasses, blackout goggles, user manual, power cable.
Certifications
RoHS; CE (Low Voltage Directive and Electromagnetic Compatibility Directive).
What a red light panel does for you is a question for you and your physician, not for a product page. If you want the manufacturer's wavelength rationale or the measurement photos behind the irradiance figures, call 919-205-8329 and we will send them.
