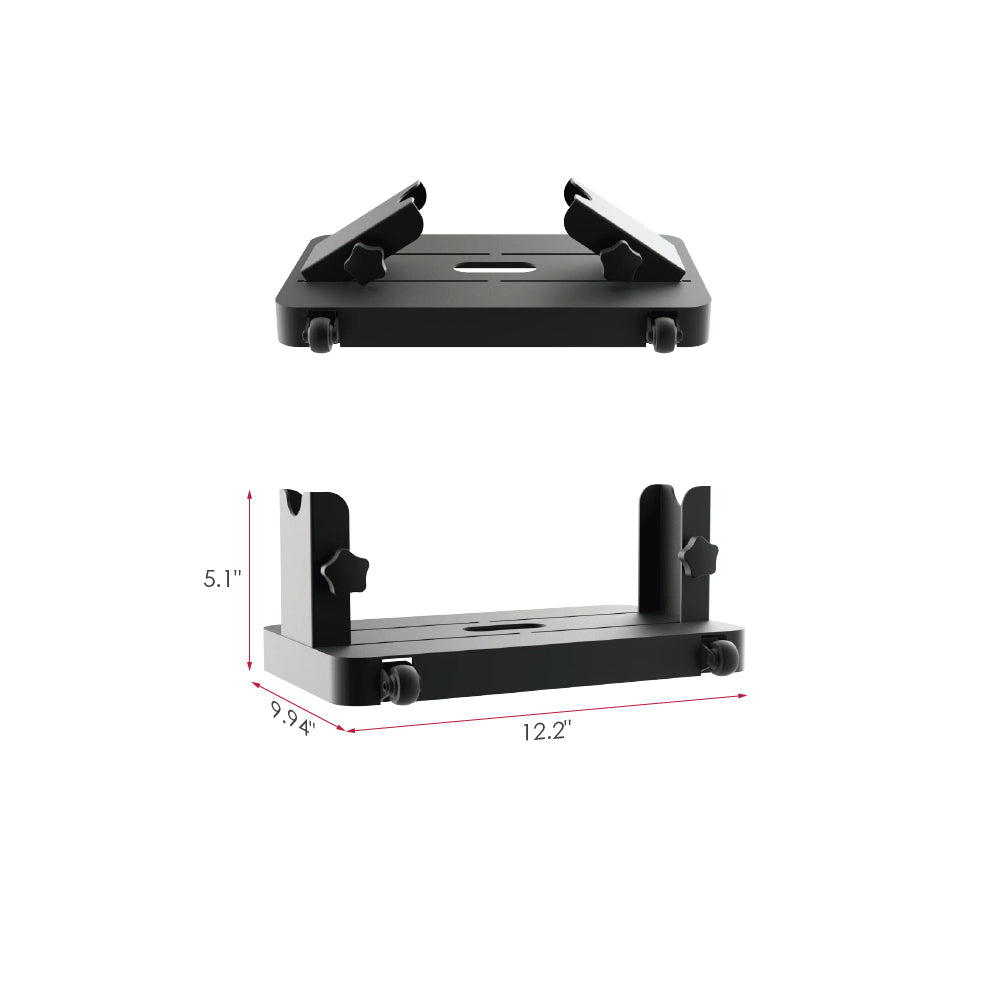

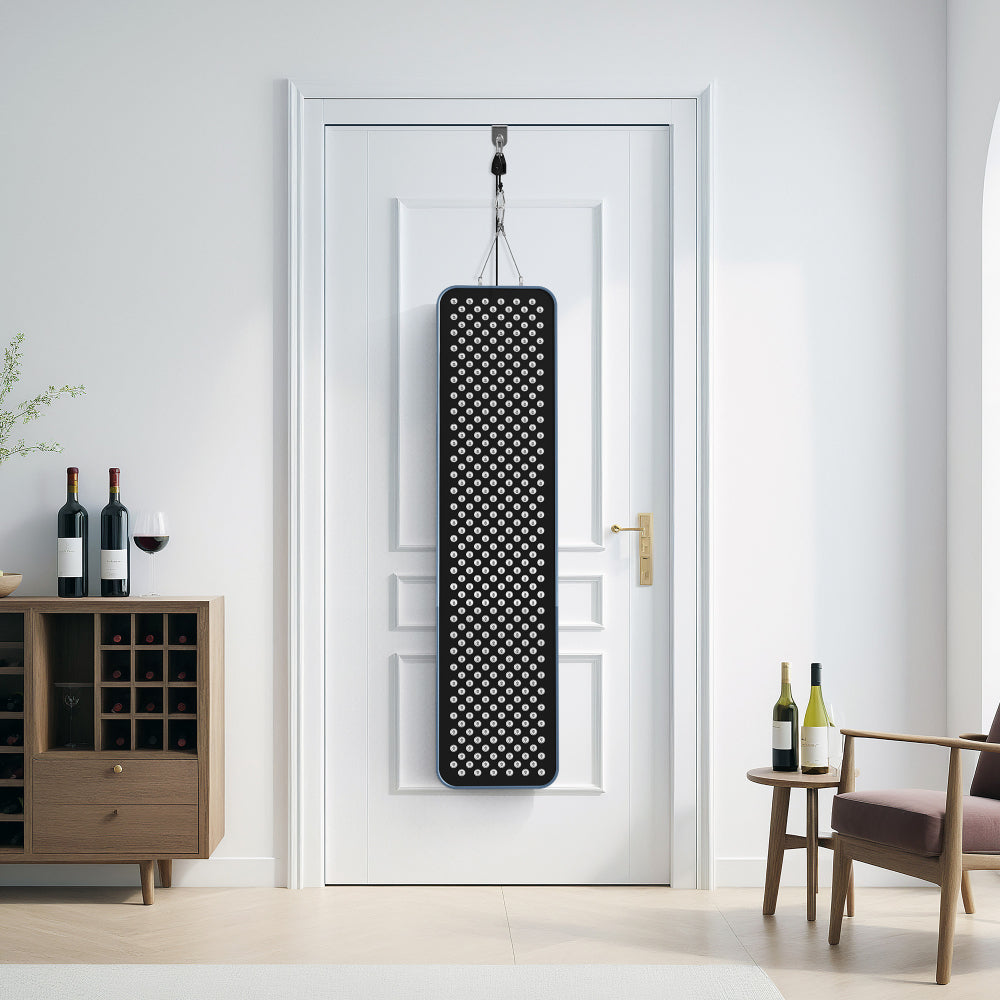

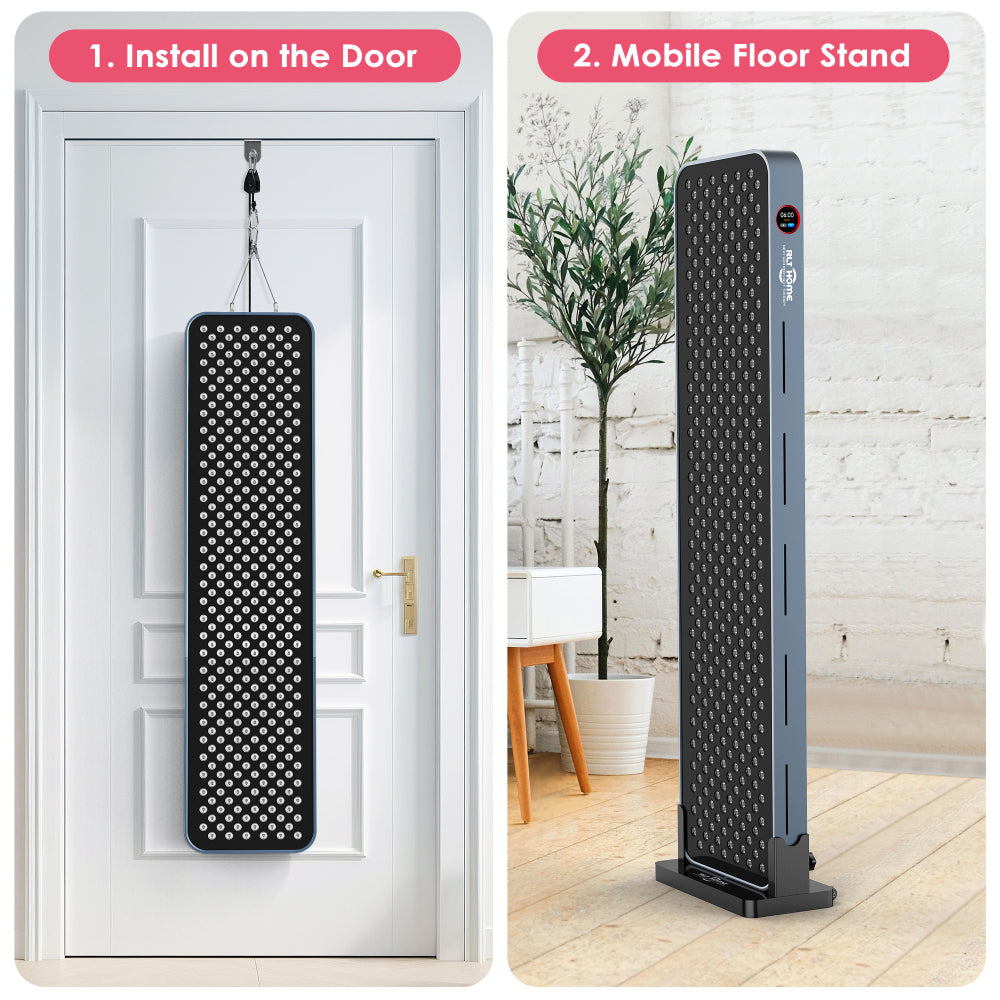

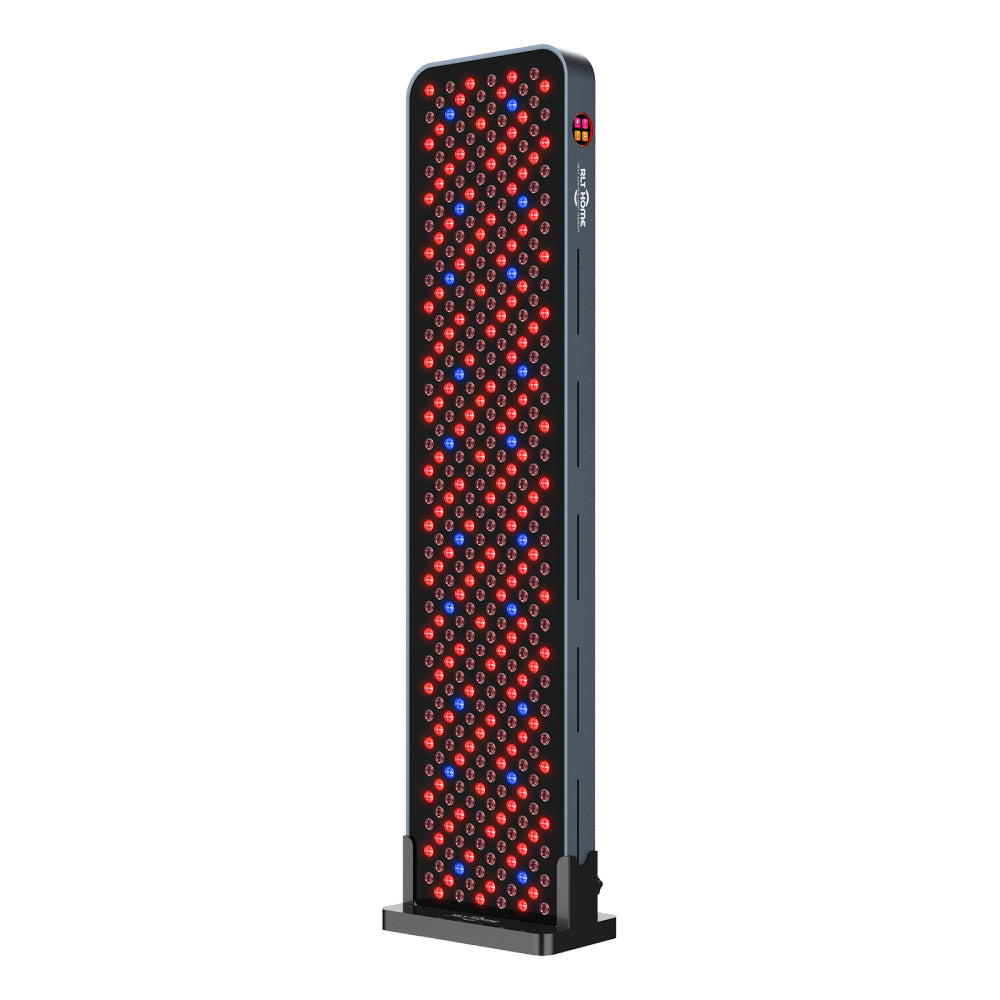

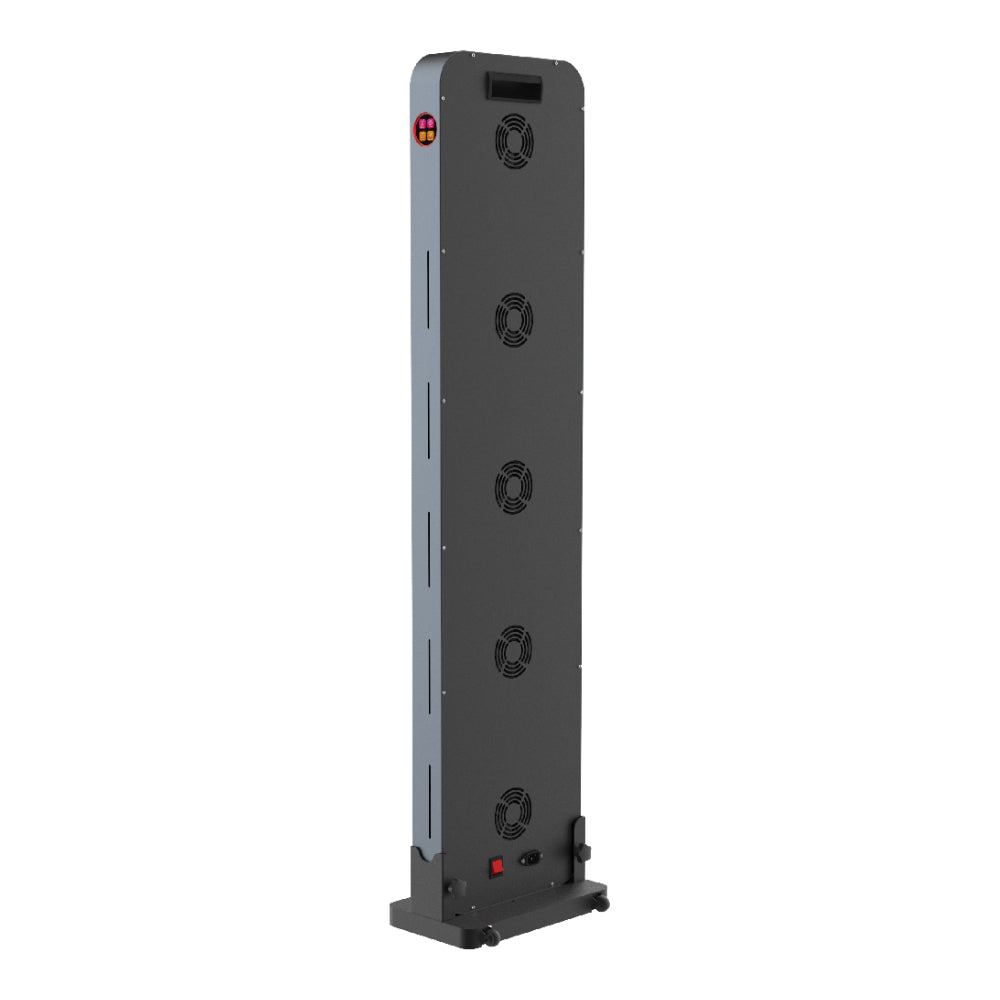

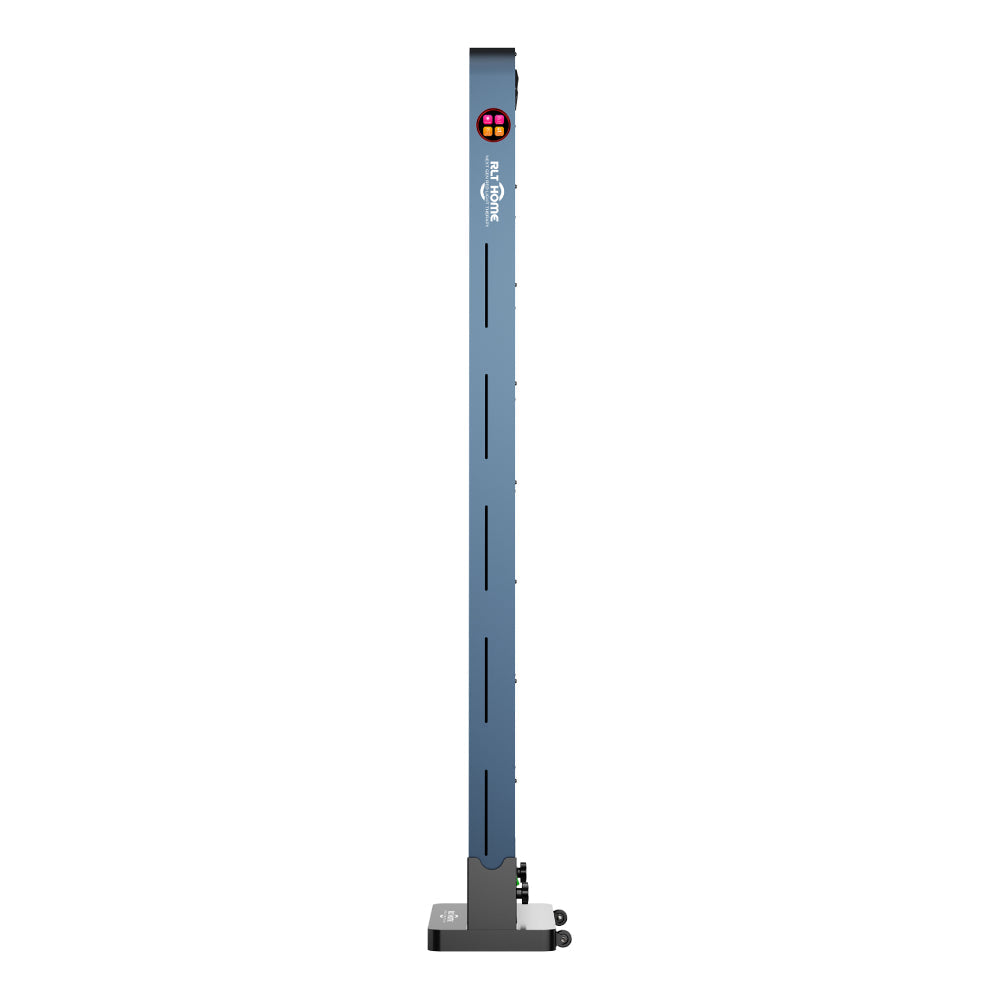

A 49-inch, 360-LED panel that covers a torso or a pair of legs in one position. It ships with a floor stand and a door-hanging kit rather than an electric stand, which is most of the price difference from the ULTRA.
It is built for a large area at a time, such as the torso, back or legs, from its stand or a door hanger. Every figure below is the manufacturer's own measurement; we list what they measured and nothing they did not.
Light
- LEDs: 360, rated for 100,000 hours

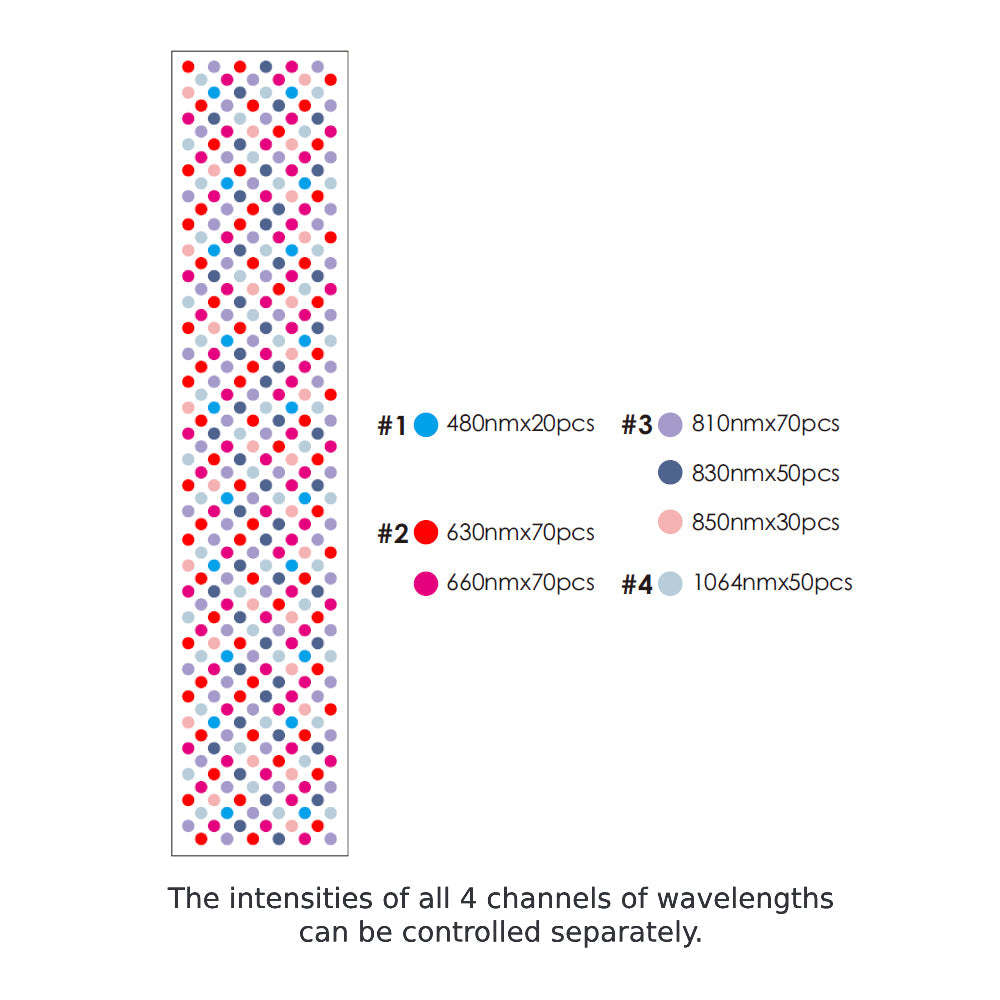

- Seven wavelengths: 480 nm blue (6% of LEDs); 630 nm and 660 nm red (19% each); 810, 830 and 850 nm near-infrared (19% / 14% / 9%); 1064 nm infrared (14%)
- Irradiance: 172 mW/cm² at 8 inches (solar power meter); 100.53 mW/cm² at 6 inches (spectrometer)
- Beam angle: 30°
- Flicker: none measured. EMF: about 0.0 μT at 6 inches and beyond
Controls
- Touch interface and remote control
- Pulsing adjustable from 0 to 5,000 Hz
- Nine preset modes plus a custom mode with independent intensity and pulsing for the red, blue, near-infrared and 1064 nm channels
- AC 100 to 240 V; standard US outlet
Size and weight

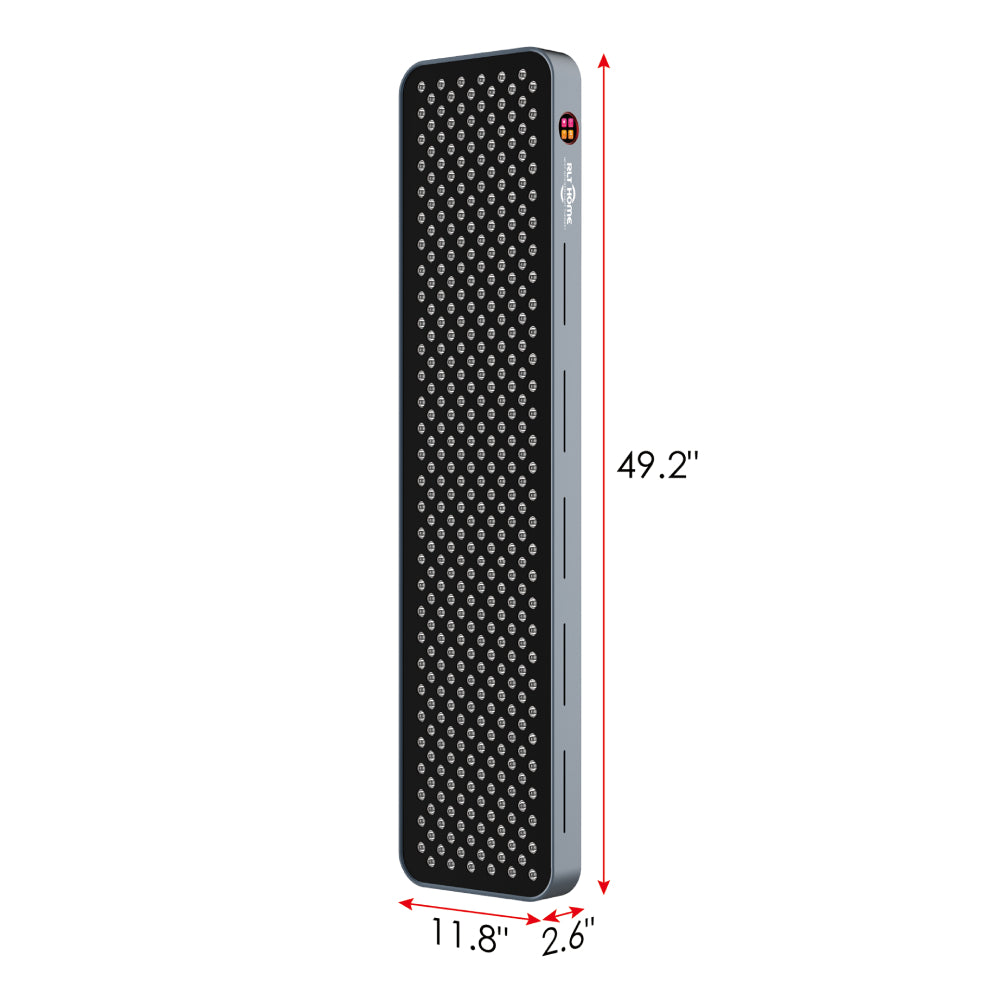

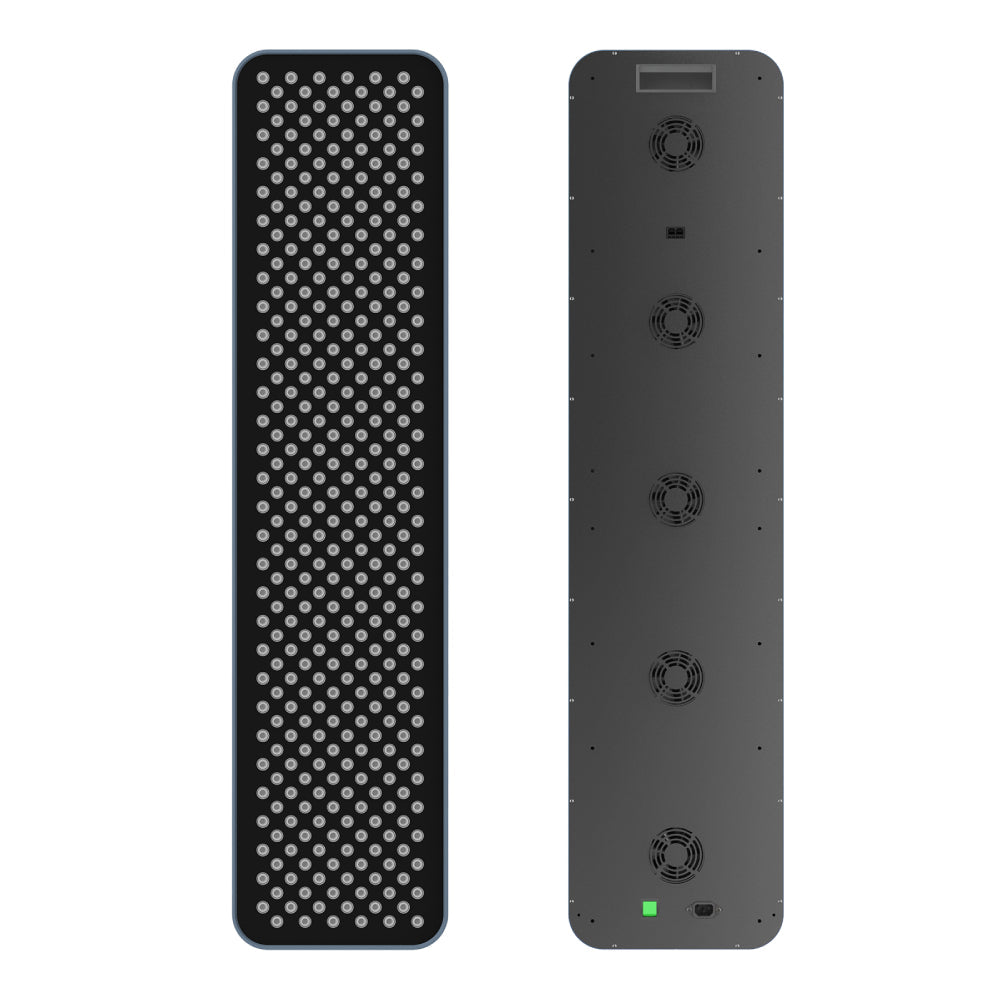

- Panel: 49.2" x 11.8" x 2.6" (1250 x 300 x 65 mm), 30.8 lb (14 kg), aluminum housing
- Ships as one box: 52" x 15" x 7", 38.6 lb
In the box

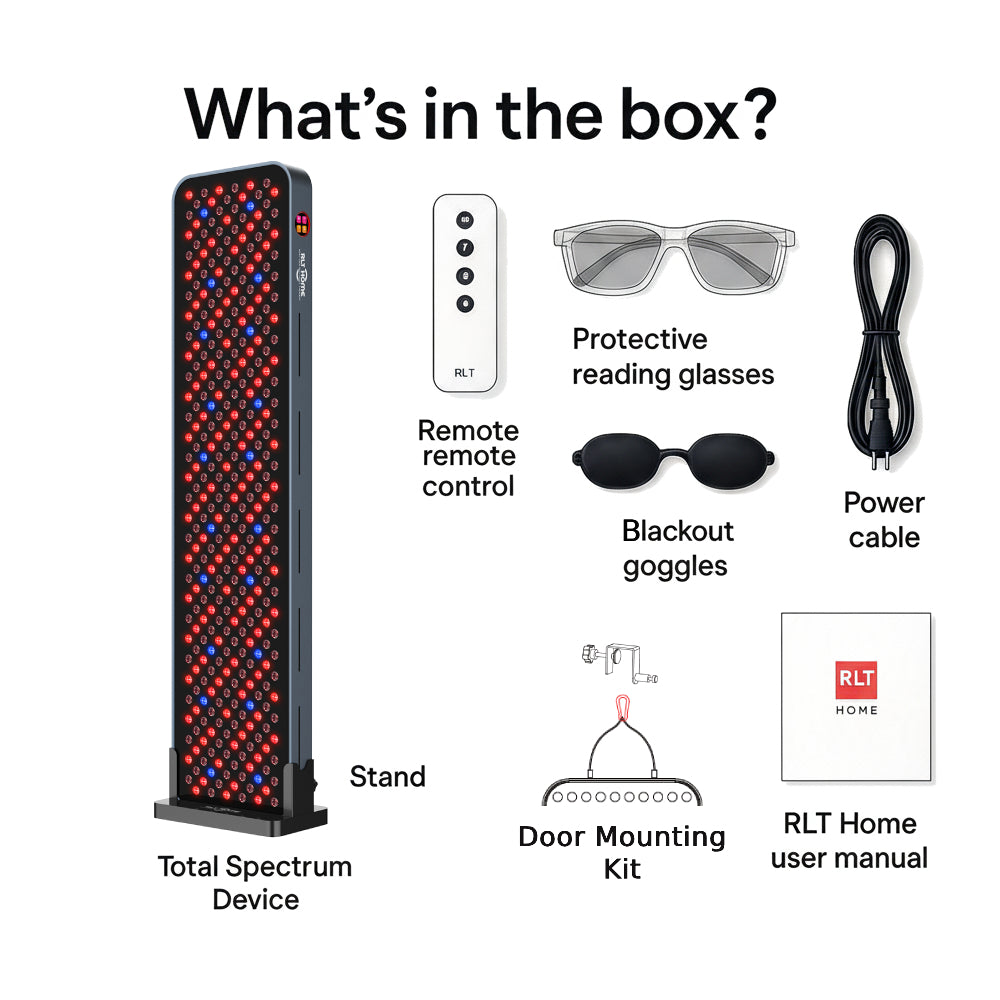

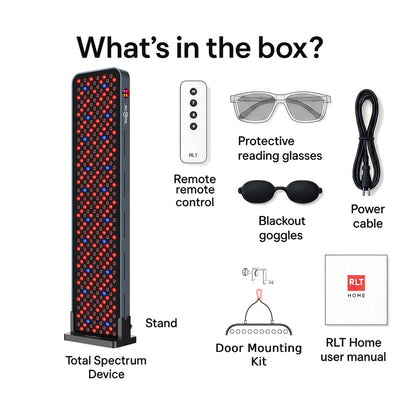

MAX panel, stand, remote control, protective reading glasses, blackout goggles, door hanging kit, user manual, power cable.
Certifications
RoHS; CE (Low Voltage Directive and Electromagnetic Compatibility Directive).
What a red light panel does for you is a question for you and your physician, not for a product page. If you want the manufacturer's wavelength rationale or the measurement photos behind the irradiance figures, call 919-205-8329 and we will send them.
